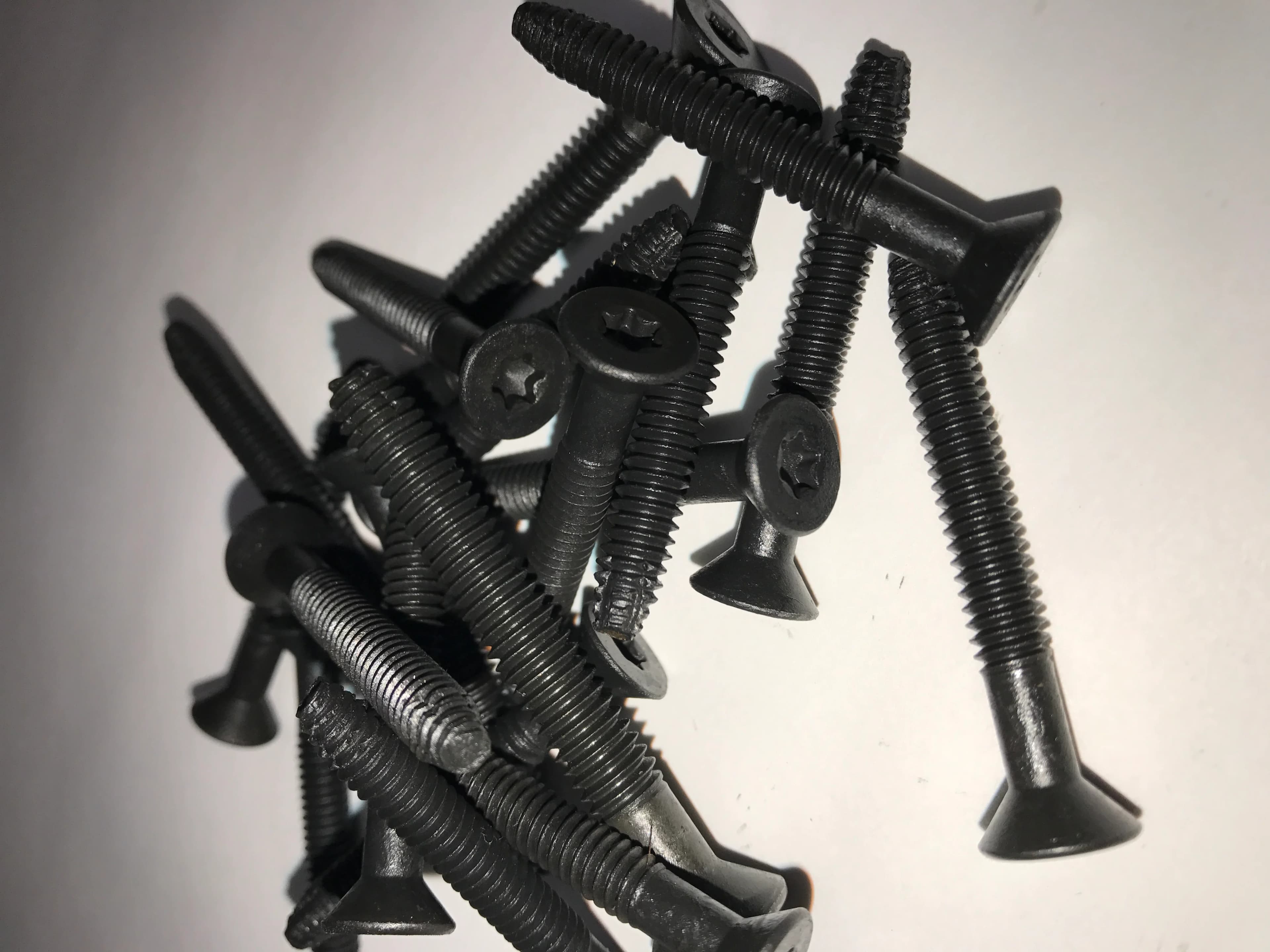

Trailer Deck Screws — Torx Drive, Thread-Cutting, Pre-Oiled
The highest torque rating in the trailer flooring industry. Our proprietary blend of steel, cutting tip, and thread pattern is why fleet managers, OEMs, and aftermarket repair shops keep coming back load after load.
Available in 1/4" × 20 TPI and 5/16" × 18 TPI, in lengths from 2" to 4". Designed for Apitong, Angelim Pedra (Brazilian Apitong), oak, maple, and softwoods on flatbeds, drop decks, dry vans, and curtain vans.
Built For The Job

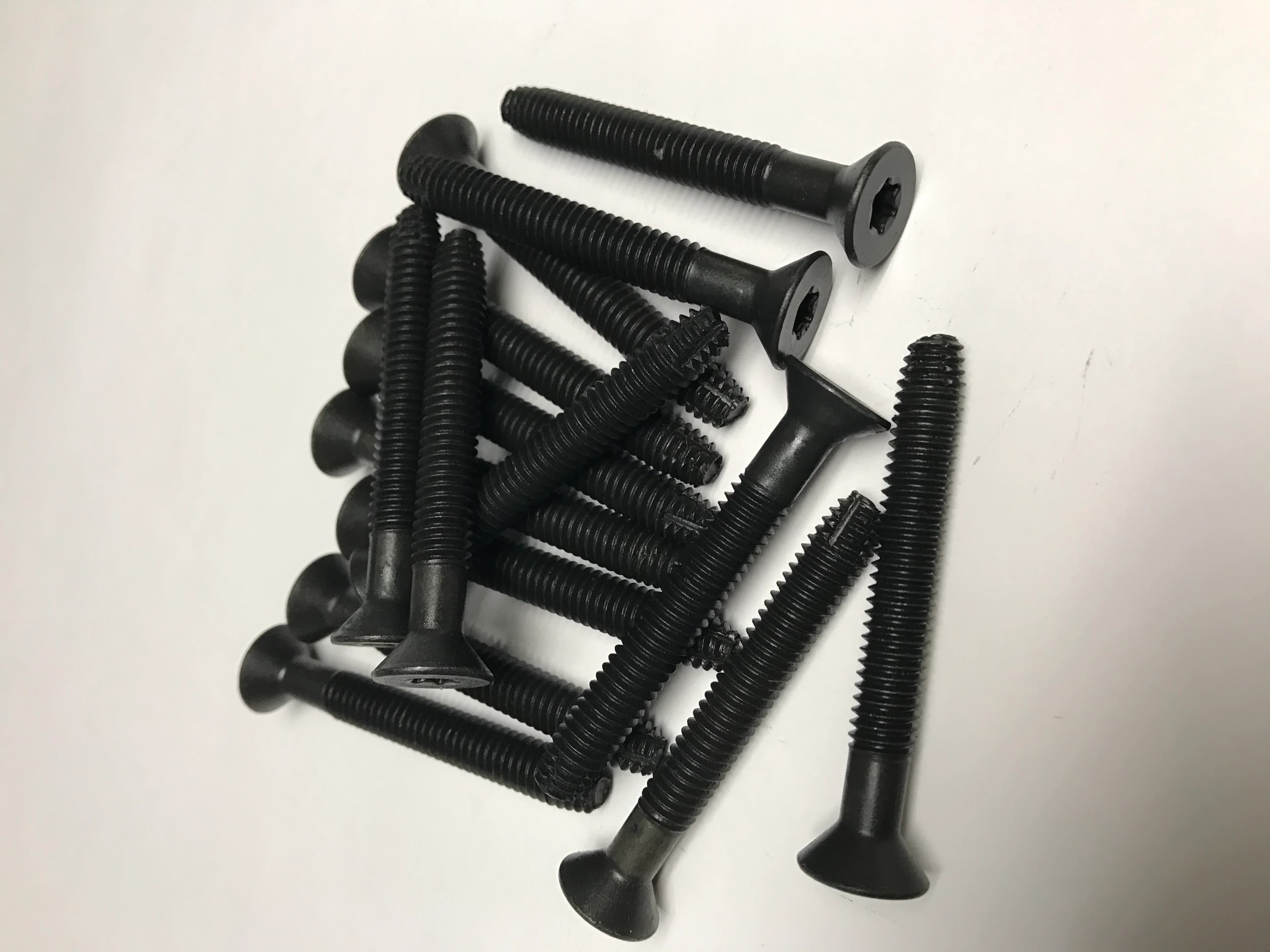

- Torx Drive T30 or T40 — no cam-out, no bit slip
- Thread-cutting tip — bites into hardwood without splitting
- Pre-oiled, lubricated — drives clean every time
- 2", 2-1/2", 3", 3-1/2", 4" lengths
- OEM-quality nuts available for stripped frames
- Black phosphate finish with mild corrosion resistance
Perfect For Use On
- Flatbed and drop-deck trailers
- Dry vans and curtain vans
- Genuine Apitong (Keruing)
- Angelim Pedra (Brazilian Apitong)
- Oak, maple, and other hardwoods
- All untreated softwoods, including Southern Yellow Pine and Douglas Fir
- Not for ACQ pressure-treated lumber — use stainless or galvanized
Why Our Screws Drive Different
Most trailer deck screws on the market are commodity hardware — slap a phosphate coating on a generic thread pattern and ship it. We took the opposite approach. We spent years tuning the steel alloy, the thread pitch, the cutting tip geometry, and the surface lubricant specifically for hardwood-on-steel trailer applications.
Real-world results from thousands of customers prove the difference. Side-by-side against the off-the-shelf alternatives, our screws deliver:
- Higher torque-to-failure — the screw breaks the deck before it breaks itself
- Cleaner threads in hardwood — fewer split boards on tight Apitong installs
- Better suck-down — the wood pulls tight to the cross member with less effort
For best results in dense tropical hardwoods like Apitong, predrill with a 7/32" (0.2188") bit for 1/4" × 20 TPI screws and a 9/32" (0.2812") bit for 5/16" × 18 TPI screws. The thread-cutting tip handles the rest.
Driven Flush, Loaded Tomorrow

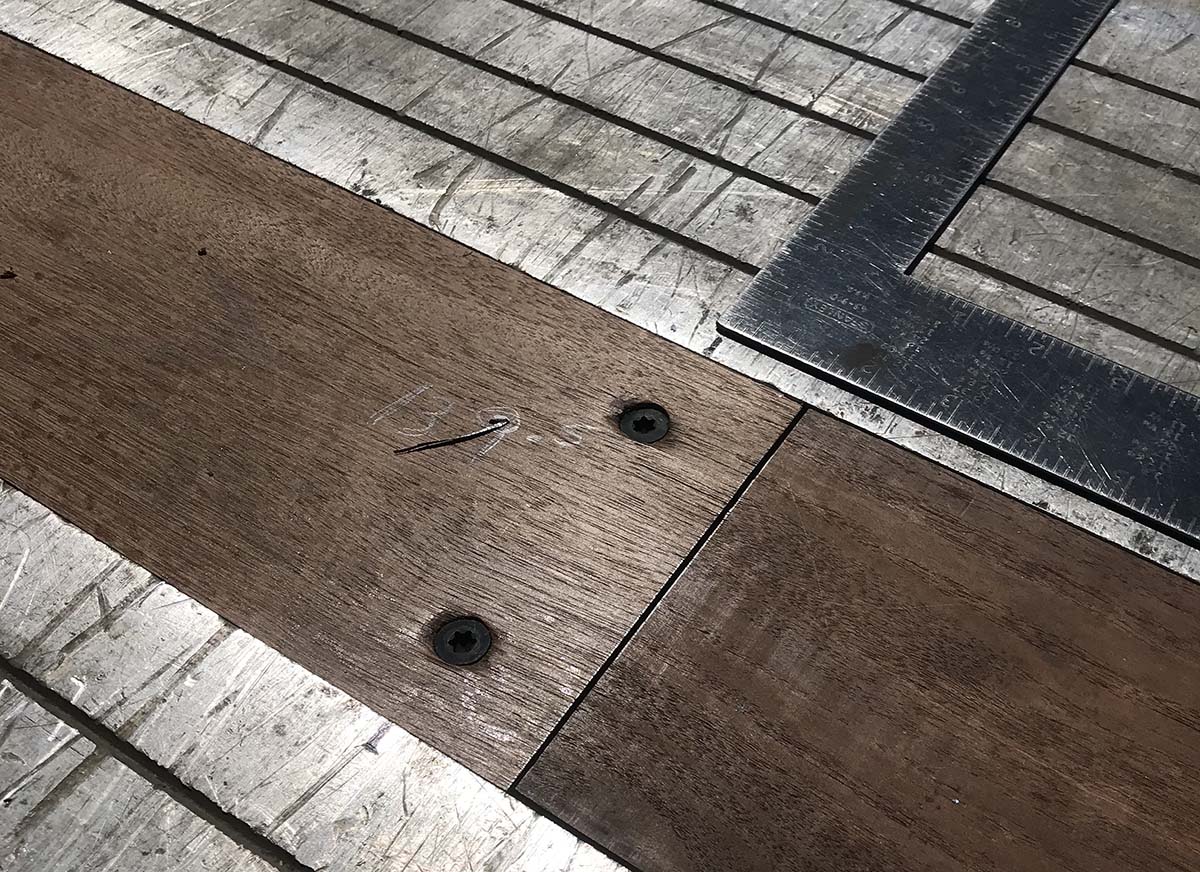

This is what right looks like — every screw set just below the wood surface, no snags for straps, no scuff hazard for forklift tires. The thread-cutting tip and our oiled finish drive consistently into Apitong even at the end of an 8-hour redeck.
One redeck with our screws beats two with the off-the-shelf alternative. The math gets obvious after the first 700-screw flatbed.
The Highest Torque Rating in the Industry
We've tested our screws against every major brand on a torque-to-failure rig. We win every time. The reason is simple — we engineered the screw for hardwood trailer flooring, not for general construction. That focus shows up at the wrench.
Product Installation Hints From a Pro
The following hints come from Tom Pole of Vanport Trucking in Vancouver, Washington. Tom has been working with wood his entire life and has repaired hundreds of trailers with new Apitong boards from TrailerDecking.com. If you're new to installing a hardwood trailer floor, his advice is gold.
Step 1 — Mark Locations and Predrill

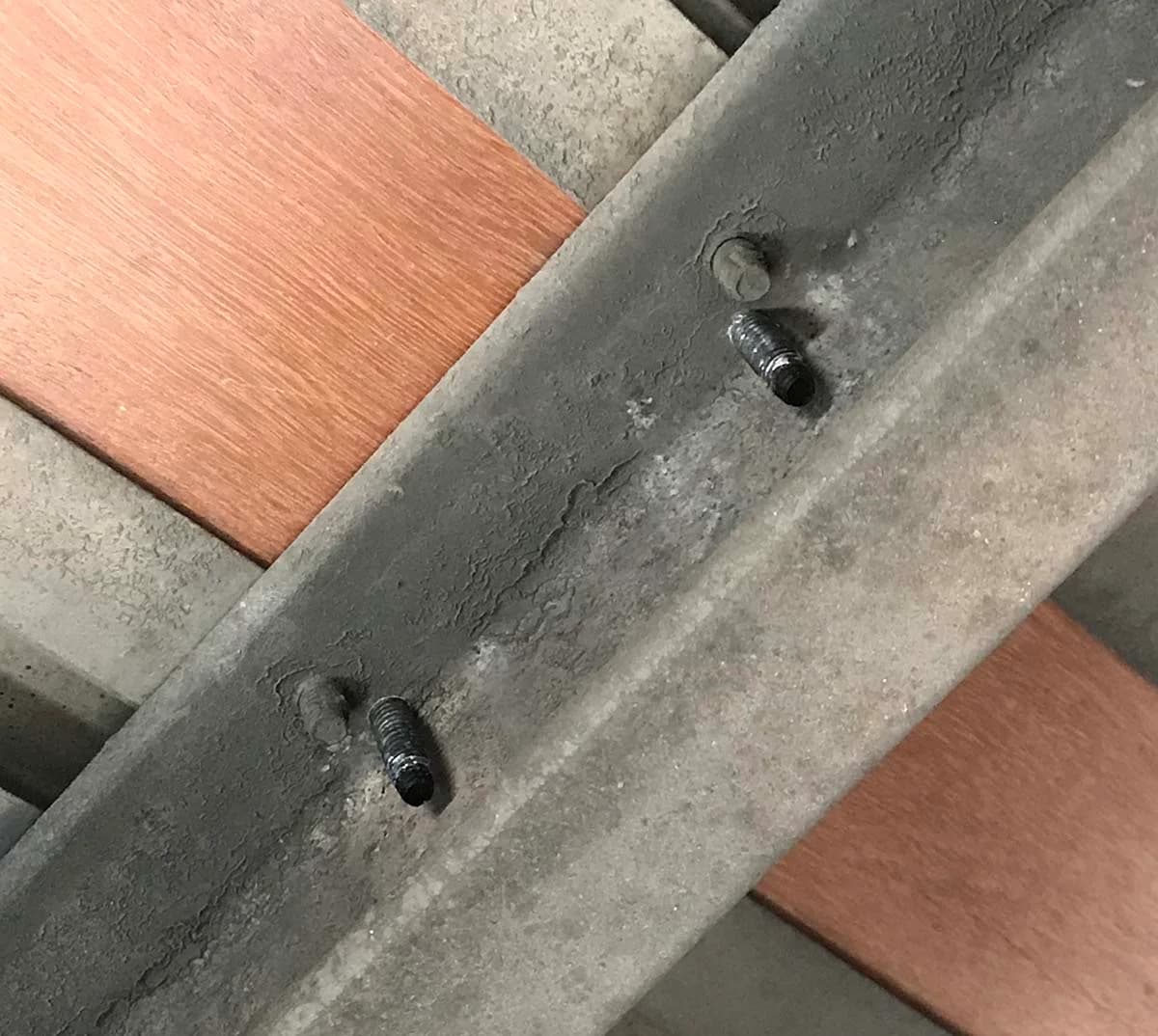

When replacing boards, don't try to use the old screw holes. They're generally centered on the cross member, may still have part of a remaining screw, and the threads are often damaged. Mark each new hole about 1/4 of the way in from the edge of the cross member, toward the vertical web — that's where the steel is thickest and the screw bites best.

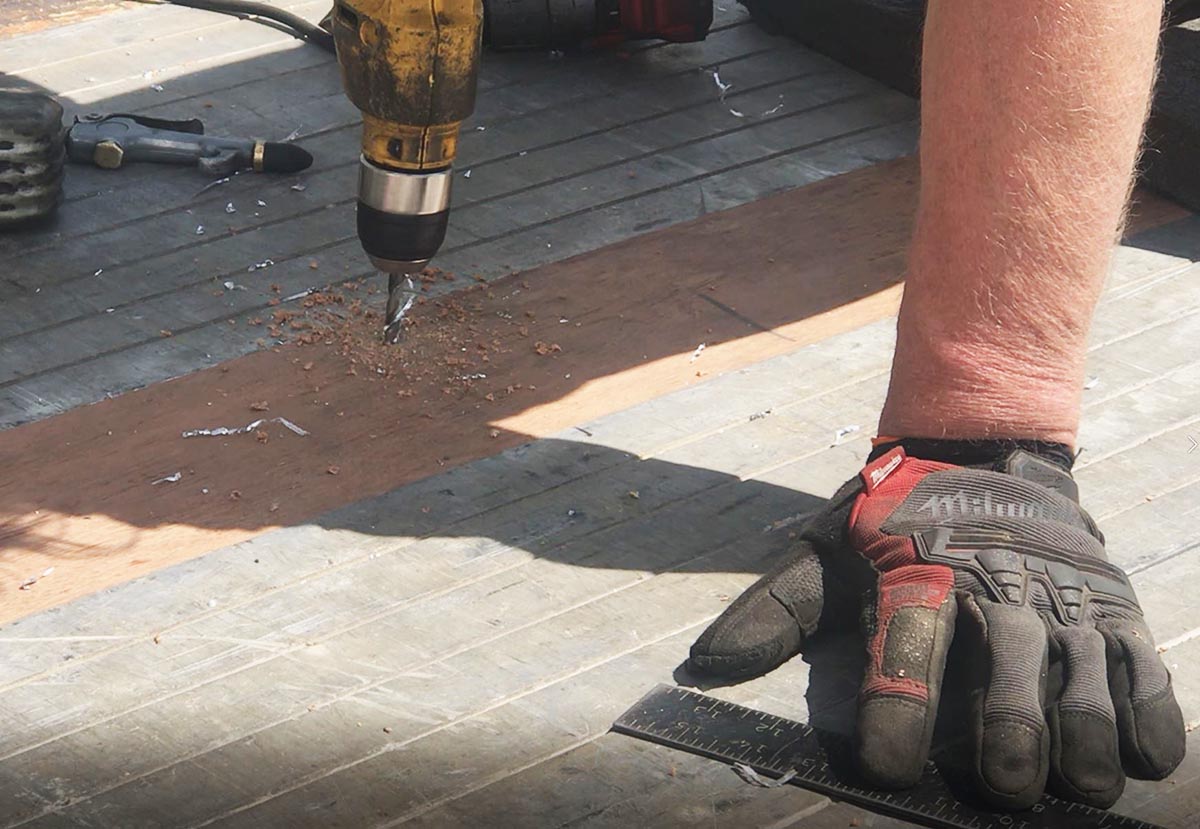

Predrill with a corded 1/2" chuck electric drill (battery drills don't have the torque required for sustained predrilling through hardwood and steel). Match the bit to the screw thread inside diameter:
- 1/4" × 20 TPI screws → 7/32" (0.2188") drill bit
- 5/16" × 18 TPI screws → 9/32" (0.2812") drill bit
Run a couple of clean-out cycles so the bit doesn't overheat. Once you hit metal, slow down and add three more clean-out cycles.
Step 2 — Bevel and Clean

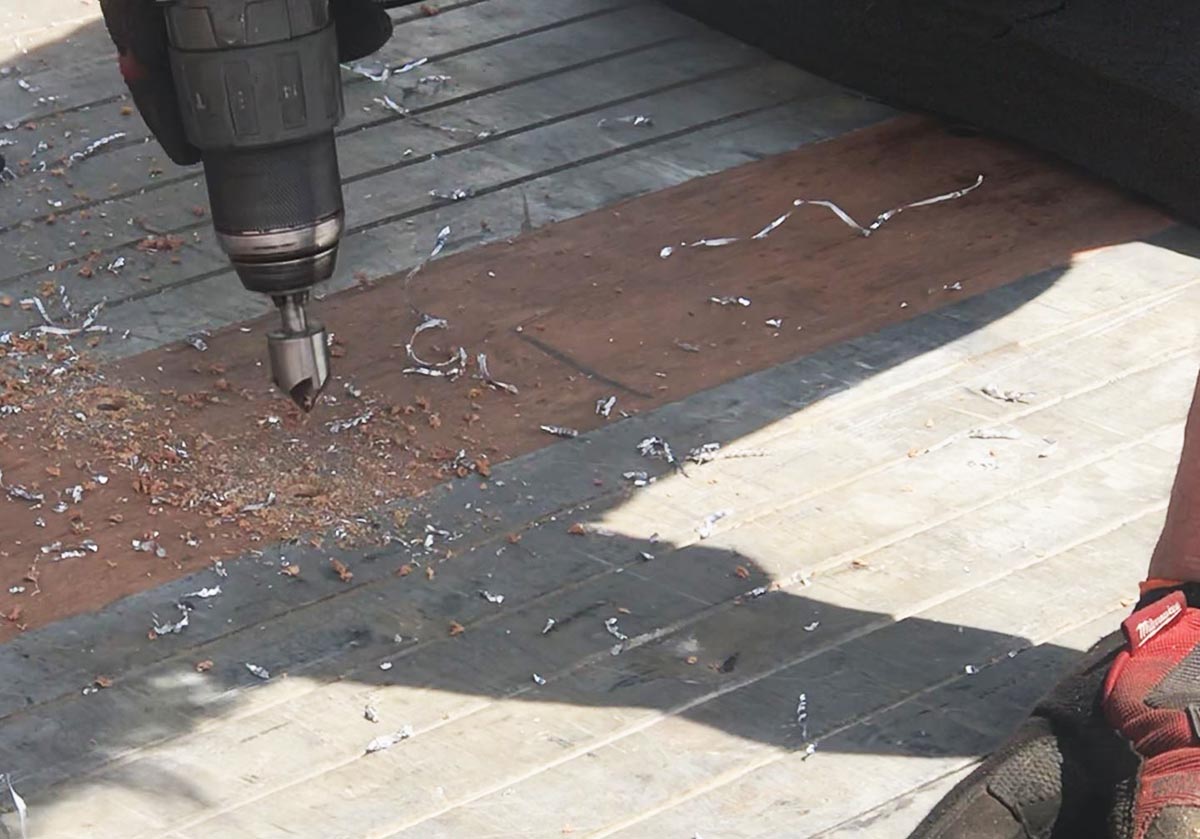

Cut the bevel with a tapered countersink bit around the top of the hole. Most professionals do this by sight. Your screws have to end up flat or just slightly below the wood surface — never sticking up where they can snag a strap or scuff a forklift tire.

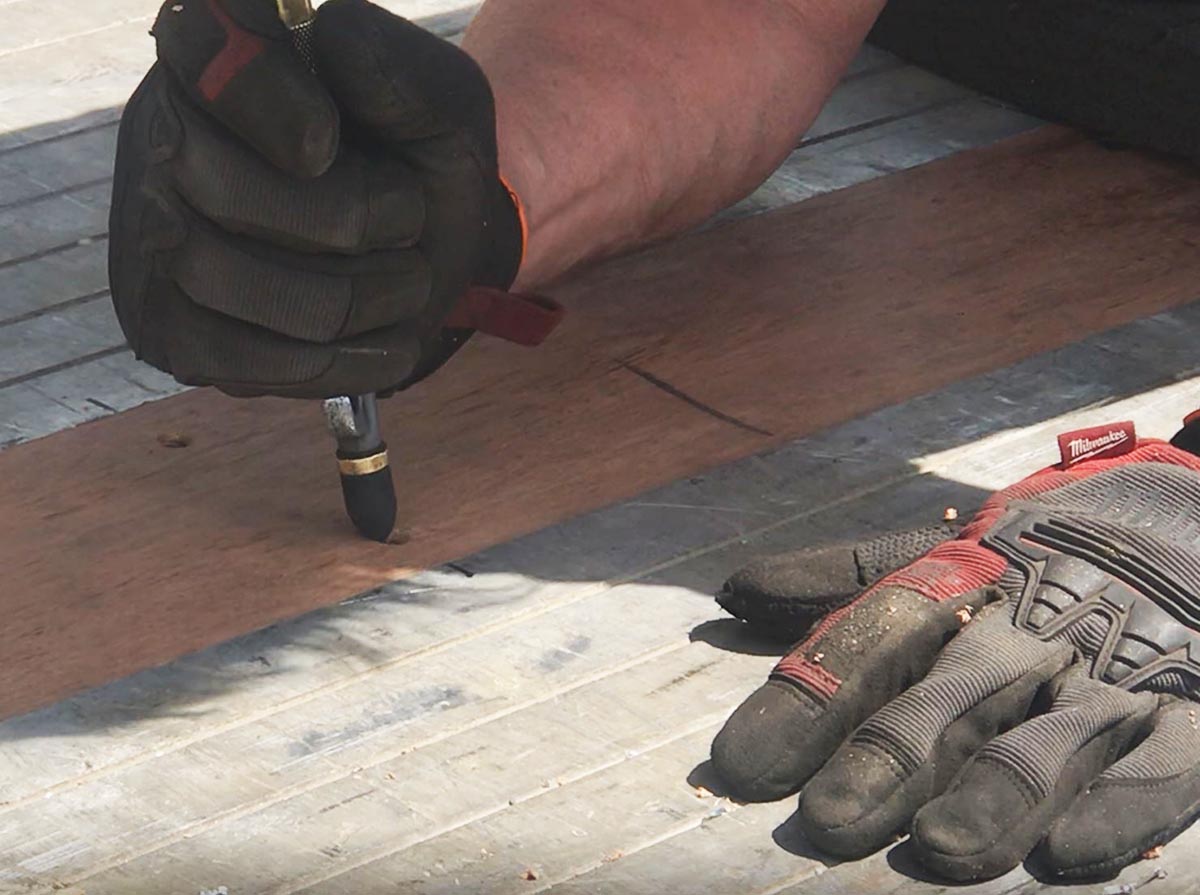

Clean out the hole with compressed air. Tom calls this the most important step. The screw needs to suck the wood tight against the cross member, and any debris in the hole will fight that. A quick blast of air clears the chips so the screw seats clean.

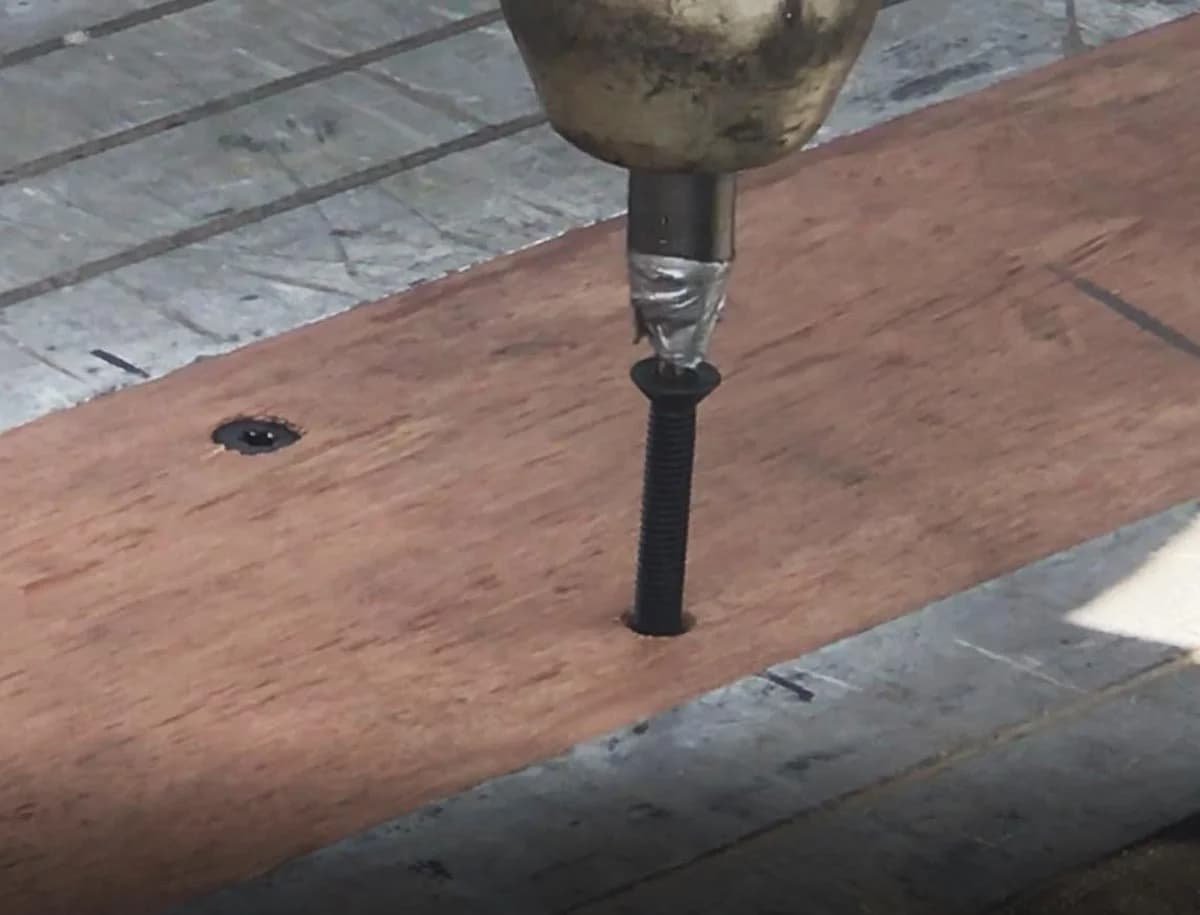

Step 3 — Drive the Screws

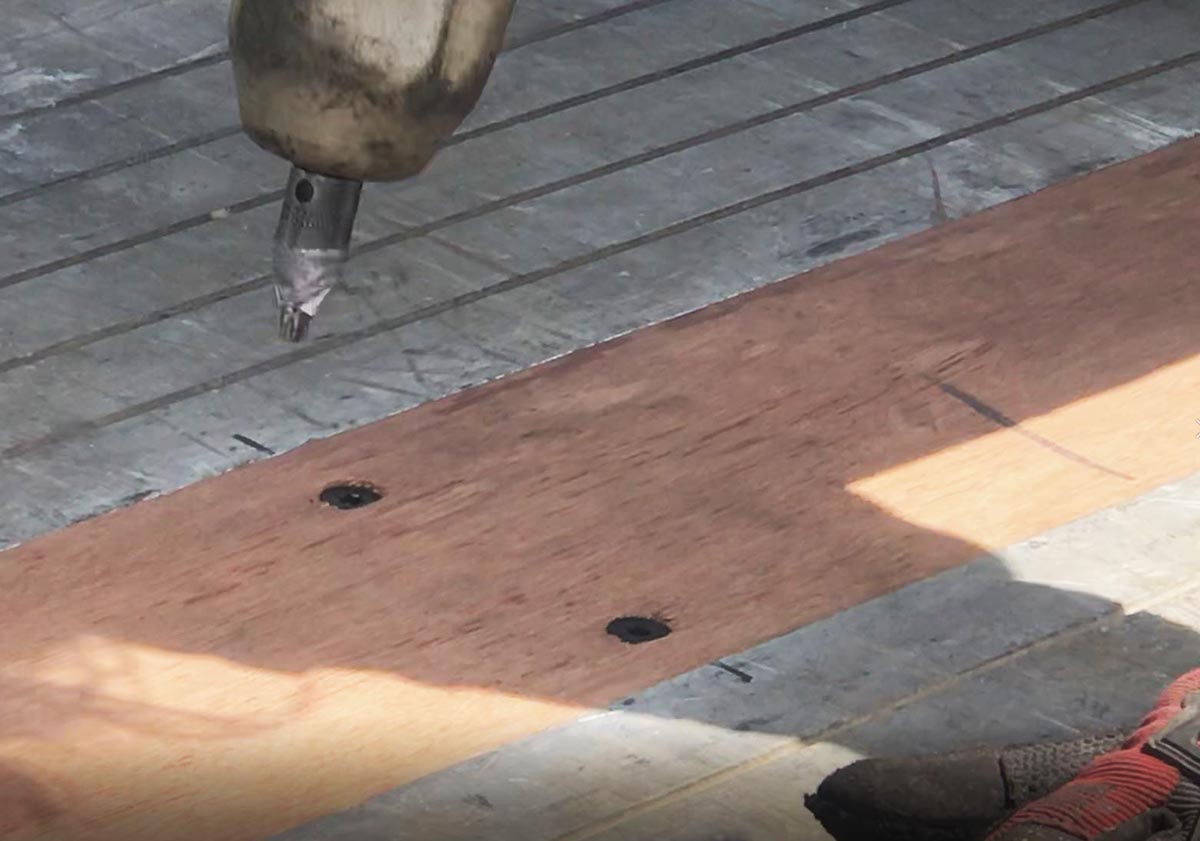

Set each screw just below the surface so nothing sticks up. An air tool with a high-quality T30 or T40 Torx bit is the right driver — battery drivers can stall on dense Apitong before the screw seats. A thick foam knee pad will save your day on a 48' floor.
The Result — Every Screw Flush, Ready to Load
That's the whole job. Mark, drill, bevel, clean, drive — repeat 700 times. With the right screws and a thick foam knee pad, a two-person crew finishes a 48' flatbed in a day.
Move on to the next cross member. The work goes faster than you think when nothing's fighting you.
Don't Forget the End Sealer
For maximum life from your hardwood floor, seal the cut ends of every board with ExoWax end sealer before installation. End-grain absorbs moisture 10× faster than the face — sealed ends keep checks and splits from starting at the joint.
Trailer Deck Screw FAQ
Common questions we get from fleet managers, owner-operators, and trailer manufacturers. Don't see yours? Call 1-855-APITONG.
What size trailer deck screw should I use for 1-1/8" Apitong shiplap?
For 1-1/8" Apitong shiplap on a standard flatbed, the most common screw is 1/4" × 20 TPI × 2" with a T30 Torx drive. If your cross members are 3/16" or thicker, step up to 1/4" × 2-1/2" for extra holding power. For 1-1/2" or 1-3/4" Apitong, we recommend 5/16" × 18 TPI × 3" or 3-1/2" with a T40 drive.
Do I need to predrill before driving these screws?
Yes — for any hardwood (Apitong, Angelim Pedra, oak, maple) you should always predrill. Use a 7/32" bit for 1/4" screws and a 9/32" bit for 5/16" screws. Predrilling prevents board splitting and lets the screw bite the cross member cleanly. Softwoods like Southern Yellow Pine and Douglas Fir don't require predrilling but still benefit from it on cold days.
Can I use these screws on ACQ pressure-treated lumber?
No. ACQ pressure-treated lumber is highly corrosive to standard phosphate-coated screws — it will eat them from the inside in a couple of years. For ACQ lumber, you must use stainless steel or hot-dipped galvanized fasteners. Our screws are excellent for hardwoods, untreated softwoods, and softwoods treated with MCA.
What's the difference between Torx T30 and T40?
T30 is the right driver size for our 1/4" deck screws; T40 is correct for 5/16" deck screws. Using the wrong bit size will round out the recess and ruin the head. We recommend keeping fresh bits on hand — even high-quality Torx bits wear out after a few hundred screws in dense Apitong.
How many trailer deck screws will I need to redeck a 48' flatbed?
A typical 48' × 102" flatbed with 24" cross-member spacing needs roughly 14 boards × 25 cross members × 2 screws per intersection = 700 screws. We sell screws by the pound and by the carton, and most customers add 10–15% extra to cover bad starts and over-driven boards.
What if the threads in the cross member are stripped?
Two options. (1) Use an OEM-quality nut on the underside — we stock 1/4" × 20 TPI and 5/16" × 18 TPI nuts that match our screws. (2) Drill a slightly oversize hole and step up to the next screw diameter. Tom's rule: if more than 10% of the holes are stripped, it's time to weld a new cross member or move to nuts on every joint.
Build the Floor With Confidence
The finest trailer decking screws available — highest torque rating, the cleanest cutting tip, and the consistent quality you need on a 700-screw redeck. Backed by our workmanship warranty and shipped same-day from Forest Grove, OR or Memphis, TN.
